14.95 USD

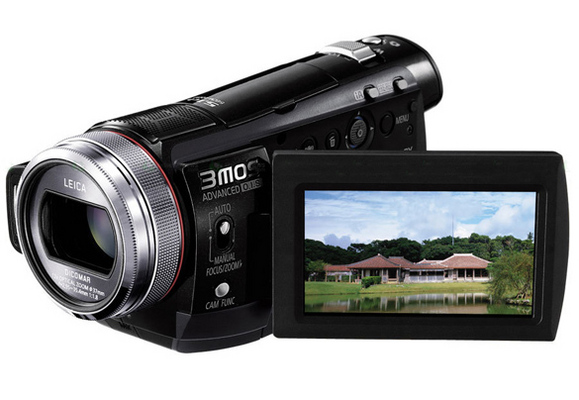

Panasonic Hdc-SD100 Series Service Manual & Repair Guide
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precaution -------------------------------------------------3
1.1. General Guidelines ----------------------------------------3
1.2. Leakage Current Cold Check ---------------------------3
1.3. Leakage Current Hot Check (See Figure 1.)--------3
1.4. How to Discharge the Capacitor on Flash
PCB------------------------------------------------------------4
2 Warning --------------------------------------------------------------5
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatically Sensitive (ES) Devices ----------5
2.2. How to Recycle the Lithium Ion Battery (U.S.
Only)-----------------------------------------------------------5
2.3. Caution for AC Cord (For EB/GC/SG) ----------------6
2.4. How to Replace the Lithium Battery-------------------7
3 Service Navigation------------------------------------------------8
3.1. Introduction --------------------------------------------------8
3.2. General Description About Lead Free Solder
(PbF) ----------------------------------------------------------8
3.3. Important Notice 1:(Other than U.S.A. and
Canadian Market) ------------------------------------------8
3.4. How to Define the Model Suffix (NTSC or PAL
model)---------------------------------------------------------9
4 Specifications ---------------------------------------------------- 10
5 Location of Controls and Components------------------ 12
6 Service Mode ----------------------------------------------------- 17
6.1. Lock Search History Indication ----------------------- 18
7 Service Fixture & Tools --------------------------------------- 19
7.1. When Replacing the Main PCB ---------------------- 19
7.2. Service Position ------------------------------------------ 19
8 Disassembly and Assembly Instructions--------------- 21
8.1. Disassembly Flow Chart-------------------------------- 21
8.2. PCB Location---------------------------------------------- 21
8.3. Disassembly Procedure -------------------------------- 22
9 Measurements and Adjustments -------------------------- 40
9.1. Electric Adjustment -------------------------------------- 40
10 Factory Setting--------------------------------------------------- 42
10.1. HOW TO TURN ON THE FACTORY
SETTINGS? ----------------------------------------------- 42
10.2. WHAT IS THE FACTORY SETTINGS? ------------ 42


***INSTANT DOWNLOAD***



After your payment, you will have instant access to your download! No shipping fee, no waiting on postal delivery.

---

Keywords: panasonic hdc-sd100;service
File Size: 4373 KBytes
